SR-Instruments Oy is delivering two Detmaster MPH Pinhole Detection Systems to ArcelorMittal Weirton Works in USA. The systems will be installed in October on Tin Plating Lines No. 4 and No. 6, which line speeds are 550 m/min. Detmaster MPH systems are able to detect pinholes from size 10 um up to large holes, and therefore, they will guarantee the efficiency and the quality assurance at the concerned Tin Plating Lines at ArcelorMittal Weirton Works.


22.4.2010

SR-Instruments Oy is delivering the Detmaster MPH Pinhole Detection System for rental use to the Ternium Mexico's Monterrey mill site in Mexico. The system will be installed on Tension Leveling Line, which maximum line speed is 425 m/min. The Detmaster system is able to detect pinholes from size 10 um up to large holes, and therefore, it will guarantee the efficiency and the quality assurance at the Ternium Mexico's Tension Leveling Line.


7.10.2009

SR-Instruments Oy is delivering the Detmaster MPH Pinhole Detection System to the Impress Deventer Plant in The Netherlands. The system will be installed on Cut-to-length Line No. 102, which maximum line speed is 450 m/min and maximum number of strokes 235 strokes/min. The Detmaster MPH system is able to detect pinholes from 10 um up to large holes and provides a signal to reject the sheets including pinholes. Thus, Detmaster MPH system will guarantee the efficiency and quality assurance at the Impress Deventer Plant's Cut-to-length Line No. 102.


Archive...

Contact information

LRQA Certificate

SR-Instruments Oy

Teknologiantie 3

90590 Oulu

FINLAND

Tel. +358 8 563 5800

Fax +358 8 563 5801

E-mail:
Mail To

Partners

SR-Instruments Oy's Partners
-Optical Quality Assurance Systems

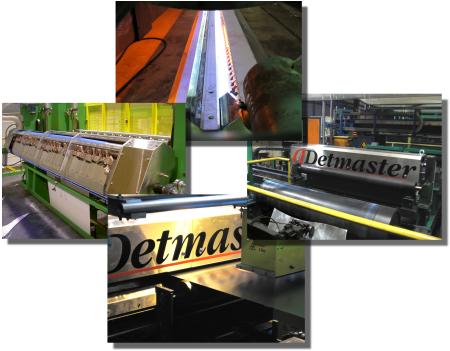

System picture

Detmaster paper and metal products.

DETMASTER SYSTEM APPLICATIONS

Detmaster is a product family of on-line web/strip inspection and quality measurement systems especially dedicated to the continuous and real-time inspection and quality measurement of metal strips and foils as well as paper and board.

Detmaster systems have been successfully installed for pinhole, hole and edge crack detection of rolled and coated metal strips, for example on tinplating, continuous annealing, pickling, hot dip galvanizing, tension levelling, cut-to-length, coil inspection and slitting line applications. Correspondingly, for coated paper and board web inspection applications Detmaster systems have been successfully installed, for example on linerboard, liquid packaging board, graphical board, art board and art paper machines.

There are in fact no limits on equipping all the major metal strip and foil processing, as well as coated paper and board manufacturing and converting lines, with the versatile Detmaster systems.


BENEFITS

No matter what your process targets for automated web/strip inspection and quality measurement are, by using Detmaster systems, your competitive advantage will be enhanced with reduced costs, increased productivity and improved quality. The superior availability and operational reliability of the Detmaster system guarantees you trouble free installation and maintenance free utilization of the Detmaster system through the entire life time of the system.


The primary advantages of the Detmaster systems are for example:

  • Simultaneous inspection tasks and quality measurements implemented with only one measurement system thanks to the applied synchronous detection and measurement methods.
  • Superior measurement sensitivity and stable operation thanks to the high performance semiconductor technology
  • Long life time LED illumination system ensures years of maintenance free operation
  • Compact system size, enabling installation without any need for line modifications, nor construction of bulky ambient light blocking
  • Entire life time reliability and cost efficiency are guaranteed with the modular system architecture. All data processing takes place locally in the system’s detector units, where the measurements themselves are performed.
