-Optical Quality Assurance Systems

Detmaster PR - Web Inspection System

Detmaster PR Web Inspection System is dedicated for detailed simultaneous on-line web inspection and quality control of coated paper and board products. The system detects coated paper and board surface defects as well as measures surface quality parameters such as gloss, brightness, gloss-mottling and white top mottling.

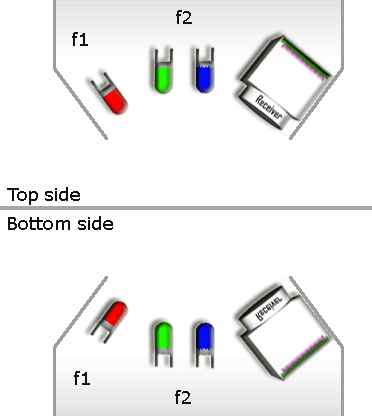

The detector beams of the Detmaster PR system are always installed against the roll surface in order to realise stable measurement conditions where web bounce and undulation are completely eliminated. As a result of this necessary arrangement the Detmaster PR system is able to detect extremely low contrast surface defects such as blade streaks, nozzle streaks, butterflies, coating skips, etc.

User Interface

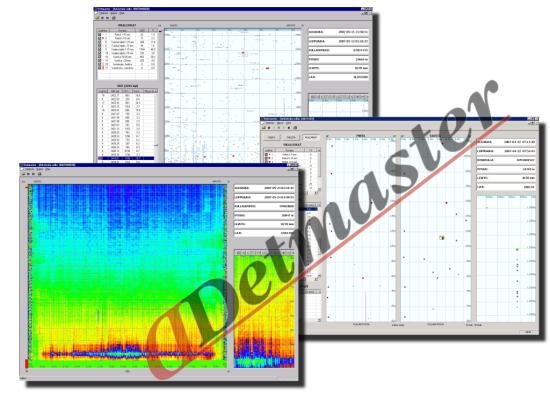

Paper products user interfaces

User Interface

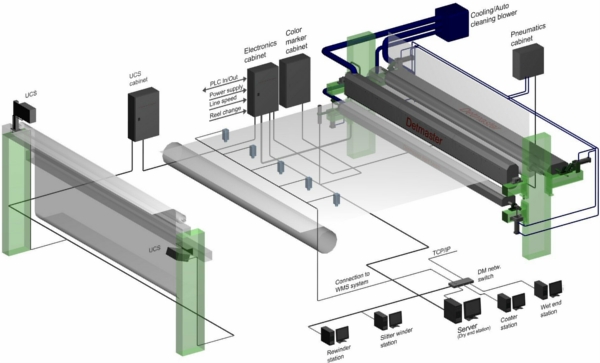

System Picture

Application Reports:

Kemiart Liners

Data Sheets:

PR Data Sheet 3.11.2008

Reports:

P-Series Detmaster for Coated Fine Paper

Detmaster quality measurements

Installations:

Stora Enso Oulu mill

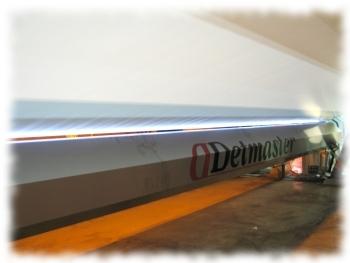

Detmaster 8600 PR system installation on off-line Coater of PM6 at Stora Enso Oulu Mill in Finland.

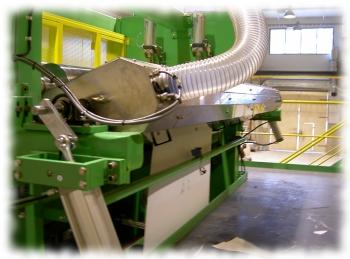

Detmaster 3000 PR system installation on Sheeter No. 6 at M-Real Simpele Board Mill in Finland.

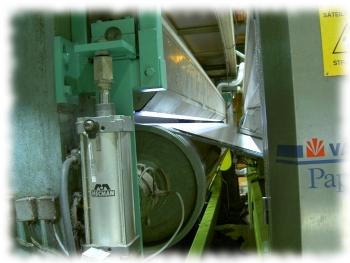

Detmaster 7200 PR system installation on BM1 at M-Real Kemiart Liners Mill in Finland.
